Diaphragm Pressure Gauges
Diaphragm Pressure Gauge 3D
3D100MG
Illustration exemplary
3D100MG1402PVEP
Diaphragm gauge guard with manometer (Series 3D), with male G-thread
Technical information

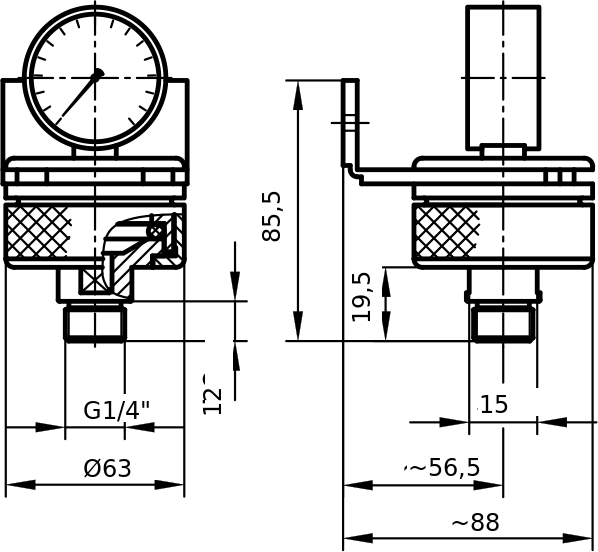

All data in mm; Illustration exemplary
Technical data
Connection | G1/4" |
Pressure | 0-2.5bar |
Material Body | PVDF |
Material O-ring | EPDM |
Material Membrane | PTFE-TFM 1700 |
Material Fitting | PVDF |
Material Union Nut | PVDF |
Pressure Stage | PN10 |
Max. Media Temperature | 140°C |
Starting from the nominal pressure rating (at 20°C), the permissible pressure reduces with increasing media temperature.
